Proof and minimum burst pressure
Click:1165
Ratio of proof and minimum burst pressure to working pressure
Number | Mode of operation | Ratio proofpressure:workingpressure | Ratio minimum burstpressure:working pressure |
1 | water hoses,max working pressure1 Mpa | 1.5 | 3.0 |
2 | hoses for other fluids,solid mattersdissolved in fluids or air and waterhoses with a working pressureabove 1 Mpa | 2.0 | 4.0 |
3 | hoses for compressed air and othergases | 2.0 | 4.0 |
4 | hoses for fluids-which underreduction of pressure,i.e.blow offinto atmosphere-change to gaseouscondition | 2.5 | 5.0 |
5 | steam hoses | 5.0 | 10.0 |
6 | high pressure hoses | 1.5 | 2.5 |
Bending radius

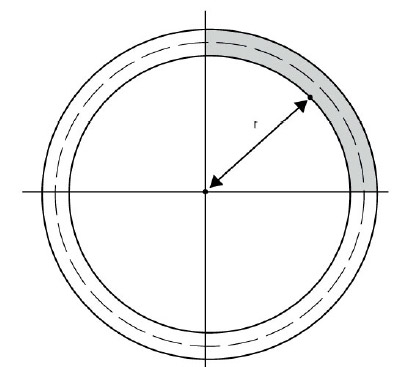

Measurement of the maximum admissible bending radius
The bending radius of hoses may be influenced by: |
r=maximum admissible
bending radius ofhose in mm
|
hose
construction(number and kind of reinforcements) wall thickness kind of material(elastomer/plastomer) helix |
|
As a rule-of-thumb the bending radii are: | |
hoses with helix:inner diameter *5 hoses without helix :inner diameter *10 |
|
In addition please-take into account that hoses without helixand under pressure(>1 bar) allow distinctively smaller radii. |
