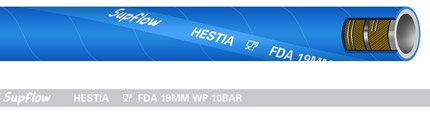

FDA approved food hose designed for suction and delivery of fatty foods such as milk, edible oil, daily products etc.
HESTIA |
FDA approved food hose designed for suction and delivery of fatty foods such as milk, edible oil and non-oily foods such as beer,wine and other daily products etc.White and smooth tube will not impart taste or odor,and is resistant to bacteria and microbes.Complies with FDA requirements. Very good oil and weathering resistance. Phthalate free . |
|
- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in.) | (mm) | (lb/ft) | (ft) |
| HESTIA-0500 | 1/2 | 12.7 | 24 | 150 | 450 | 29 | 45 | * | 200 |
| HESTIA-0750 | 3/4 | 19.7 | 32 | 150 | 450 | 29 | 60 | * | 200 |
| HESTIA-1000 | 1 | 25.4 | 38 | 150 | 450 | 29 | 90 | * | 200 |
| HESTIA-1250 | 1-1/4 | 31.8 | 46 | 150 | 450 | 29 | 110 | * | 200 |
| HESTIA-1500 | 1-1/2 | 38.1 | 52 | 150 | 450 | 29 | 135 | * | 200 |
| HESTIA-2000 | 2 | 50.8 | 66 | 150 | 450 | 29 | 180 | * | 200 |
| HESTIA-2500 | 2-1/2 | 63.5 | 80 | 150 | 450 | 29 | 220 | * | 200 |
| HESTIA-3000 | 3 | 76.2 | 93 | 150 | 450 | 29 | 265 | * | 200 |
| HESTIA-4000 | 4 | 101.6 | 120 | 150 | 450 | 29 | 355 | * | 200 |
