Special compound to resist petroleum products with aromatic content<50%

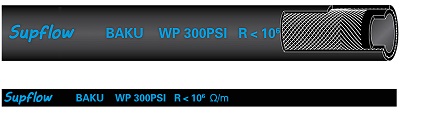

BAKU |
|
|
Excellent resistance to ageing, atmospheric conditions and ozone- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (mm) | (lb/ft) | (ft) |
| BAKU-0250 | 1/4" | 6.4 | 13 | 300 | 900 | 30 | 0.094 | 328 |
| BAKU-0310 | 5/16" | 7.9 | 15 | 300 | 900 | 35 | 0.114 | 328 |
| BAKU-0380 | 3/8" | 9.5 | 17 | 300 | 900 | 38 | 0.128 | 328 |
| BAKU-0500 | 1/2" | 12.7 | 22 | 300 | 900 | 45 | 0.188 | 328 |
| BAKU-0630 | 5/8" | 15.9 | 26 | 300 | 900 | 55 | 0.235 | 328 |
| BAKU-0750 | 3/4" | 19.1 | 30 | 300 | 900 | 58 | 0.289 | 328 |
| BAKU-1000 | 1" | 25.4 | 37 | 300 | 900 | 80 | 0.417 | 328 |
