Used for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium)

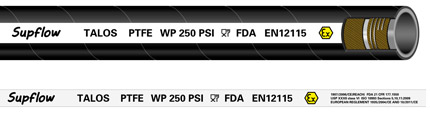

TALOS PTFE |
|
|
Resistant to high temperature and oxidation.Excellent chemical and mechanical properties- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|
| No. | in | mm | mm | psi | psi | in | lb/ft | ft |
| TALOS PTFE-0500 | 1/2" | 13.0 | 25.0 | 250 | 1000 | 3.5 | 0.36 | 130 |
| TALOS PTFE-0750 | 3/4" | 19.0 | 31.0 | 250 | 1000 | 5.1 | 0.47 | 130 |
| TALOS PTFE-1000 | 1" | 25.0 | 37.0 | 250 | 1000 | 6.7 | 0.58 | 130 |
| TALOS PTFE-1250 | 1-1/4" | 32.0 | 44.0 | 250 | 1000 | 8.5 | 0.79 | 130 |
| TALOS PTFE-1500 | 1-1/2" | 38.0 | 51.0 | 250 | 1000 | 10.0 | 0.96 | 130 |
| TALOS PTFE-2000 | 2" | 50.0 | 66.0 | 250 | 1000 | 13.0 | 1.40 | 130 |
| TALOS PTFE-2500 | 2-1/2" | 63.5 | 79.5 | 250 | 1000 | 16.9 | 1.99 | 65 |
| TALOS PTFE-3000 | 3" | 75.0 | 91.0 | 250 | 1000 | 20.1 | 2.31 | 65 |
| TALOS PTFE-4000 | 4" | 100.0 | 116.0 | 250 | 1000 | 26.6 | 3.09 | 65 |
