A high-quality construction for hot water up to 200°F (93°C) for cleanup service in food processing plants, dairies, packing houses, bottling plants, breweries, canneries and creameries.

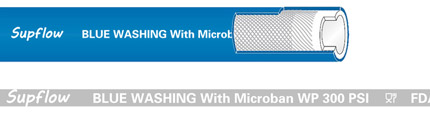

BLUE WASHING |
|
|
Its super abrasion and oil-resistant cover provides maximum protection against the adverse effects of oil and animal fats- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| BLUE WASHING-0375 | 3/8" | 9.5 | 17.5 | 300 | 1200 | * | * | 0.20 | 500 |
| BLUE WASHING-0500 | 1/2" | 12.7 | 22.8 | 300 | 1200 | 2.8 | 70 | 0.30 | 500 |
| BLUE WASHING-0625 | 5/8" | 15.8 | 26.9 | 300 | 1200 | 3.5 | 90 | 0.42 | 500 |
| BLUE WASHING-0750 | 3/4" | 19.1 | 30.2 | 300 | 1200 | 4.1 | 105 | 0.44 | 500 |
| BLUE WASHING-1000 | 1" | 25.4 | 38.1 | 300 | 1200 | 5.1 | 130 | 0.64 | 450 |
