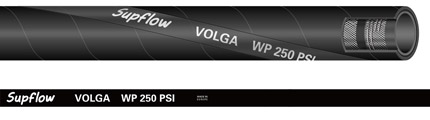

VOLGA - Supflow

Products

Tube:	SBR,Black,smooth,resistant to waste water from 5 to 10 pH
Reinforcement:	High tensile textile cord,dual steel helix
Cover:	SBR ,Black,smooth with cloth impression,weather,ozone and abrasion resistant
Temp. Range:	-22°F to 185°F(-30°C to 85°C)

PART	ID		OD	Work. Pressure	Burst. Pressure	Vacuum resistance	Bending radius	Weight	Coil length
NO.	IN.	MM.	MM.	PSI	PSI	PSI	MM	LB/FT	FT
VOLGA-0750	3/4"	19	29	250	750	13.05	76	0.34	200
VOLGA-1000	1"	25	36	250	750	13.05	100	0.48	200
VOLGA-1250	1-1/4"	32	43	250	750	13.05	128	0.60	200
VOLGA-1500	1-1/2"	38	50	250	750	13.05	152	0.89	200
VOLGA-1750	1-3/4"	45	58	250	750	13.05	180	1.06	200
VOLGA-2000	2"	51	64	250	750	13.05	204	1.18	200
VOLGA-2500	2-1/2"	63	76	250	750	13.05	252	1.51	200
VOLGA-2750	2-3/4"	70	84	250	750	13.05	280	1.76	200
VOLGA-3000	3"	76	90	250	750	13.05	304	1.95	200
VOLGA-4000	4"	102	118	250	750	13.05	408	2.96	200
VOLGA-5000	5"	127	144	250	750	13.05	508	4.07	200
VOLGA-6000	6	152	173	250	750	13.05	760	6.12	200
VOLGA-8000	8"	203	228	250	750	13.05	1015	9.89	200
VOLGA-10000	10"	254	284	250	750	13.05	1270	15.12	40
VOLGA-12000	12"	305	339	250	750	13.05	1830	21.88	40
