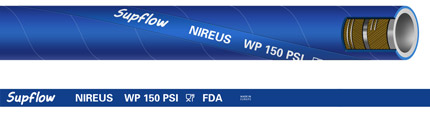

Suction and delivery hose for transporting water, wine, beer, juice and soft drinks, excellent choice for brewery and winery applications.
NIREUS |
|
|
Suction and delivery hose for transporting water, wine, beer, juice and soft drinks - Specifications
| PART | ID | OD | Work. Pressure | Burst. Pressure | Vacuum resistance | Bending radius | Weight | Coil length | |
|---|---|---|---|---|---|---|---|---|---|
| NO. | IN. | MM. | MM. | PSI | PSI | PSI | MM | LB/FT | FT |
| NIREUS-0750 | 3/4" | 19 | 31 | 150 | 450 | 13.05 | 76 | 0.47 | 200 |
| NIREUS-1000 | 1" | 25 | 37 | 150 | 450 | 13.05 | 100 | 0.59 | 200 |
| NIREUS-1250 | 1-1/4" | 32 | 44 | 150 | 450 | 13.05 | 128 | 0.71 | 200 |
| NIREUS-1500 | 1-1/2" | 38 | 50 | 150 | 450 | 13.05 | 152 | 0.82 | 200 |
| NIREUS-2000 | 2' | 51 | 63 | 150 | 450 | 13.05 | 204 | 1.13 | 200 |
| NIREUS-2500 | 2-1/2" | 63 | 75 | 150 | 450 | 13.05 | 252 | 1.49 | 200 |
| NIREUS-3000 | 3" | 76 | 89 | 150 | 450 | 13.05 | 304 | 1.91 | 200 |
| NIREUS-4000 | 4" | 102 | 116 | 150 | 450 | 13.05 | 408 | 2.63 | 200 |
