EPDM suction and discharge hose for domestic water, industrial water, effluents, slurry and liquid manure.

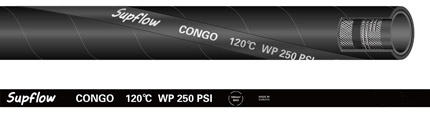

CONGO |
|
|
Wide range of diameters to suit pumps in all fields of industry - Specifications
| PART | ID | OD | Work. Pressure | Burst. Pressure | Vacuum resistance | Bending radius | Weight | Coil length | |
|---|---|---|---|---|---|---|---|---|---|
| NO. | IN. | MM. | MM. | PSI. | PSI. | PSI. | IN. | LB/FT | FT |
| CONGO-1000 | 1" | 25 | 35 | 250 | 750 | 13.05 | 3.94 | 0.45 | 200 |
| CONGO-1250 | 1-1/4" | 32 | 42 | 250 | 750 | 13.05 | 5.04 | 0.56 | 200 |
| CONGO-1500 | 1-1/2" | 38 | 49 | 250 | 750 | 13.05 | 5.98 | 0.71 | 200 |
| CONGO-2000 | 2' | 51 | 62 | 250 | 750 | 13.05 | 8.03 | 1 | 200 |
| CONGO-2500 | 2-1/2" | 63 | 77 | 250 | 750 | 13.05 | 9.92 | 1.5 | 200 |
| CONGO-3000 | 3" | 76 | 90 | 250 | 750 | 13.05 | 11.97 | 1.82 | 200 |
| CONGO-4000 | 4" | 102 | 117 | 250 | 750 | 13.05 | 16.06 | 2.55 | 200 |
| CONGO-5000 | 5" | 127 | 145 | 250 | 750 | 13.05 | 20.00 | 4.06 | 200 |
| CONGO-6000 | 6" | 152 | 172 | 250 | 750 | 13.05 | 29.92 | 5.7 | 200 |
| CONGO-8000 | 8" | 203 | 229 | 250 | 750 | 13.05 | 39.96 | 9.41 | 66 |
| CONGO-10000 | 10" | 254 | 284 | 250 | 750 | 13.05 | 50.00 | 13.12 | 66 |
