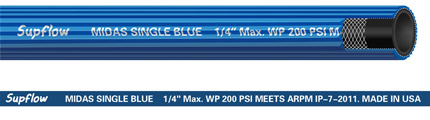

MIDAS SINGLE BLUE

Supflow ProductsMIDAS SINGLE BLUE

Products

Flexible and light weight for easy handing
Long safe service life
The cover is particularly resistant to atmoshperic conditions(ozone and hot spots)

Tube:	synthetic rubber
Reinforcement:	Spiral synthetic yarn
Cover:	synthetic rubber ribbed surface
Temp. Range:	-40°F to +120°F(-40°C to +49°C)

Part	ID		OD	Work Pressure	Burst Pressure	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	mm	(lb/ft)	(ft)
MIDAS SINGLE BLUE-0190	3/16	4.8	11.1	200	600	2.0	50	0.08	500
MIDAS SINGLE BLUE-0250	1/4	6.4	13.5	200	600	2.2	55	0.10	500
MIDAS SINGLE BLUE-0310	5/16	7.9	15.1	200	600	2.6	65	0.13	500
MIDAS SINGLE BLUE-0380	3/8	9.5	16.7	200	600	3.0	75	0.77	500
