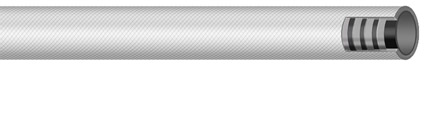

For carrying cooling water to furnace doors in steel mills and similar service operations where the outside of the hose is subjected to open flame and elevated temperatures.
PROTEUS COOLING |
|
|
Insulation performance is good - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| PROTEUS COOLING-0250 | 1/2 | 12.7 | 26.9 | 200 | 600 | 4.7 | 120 | 0.38 | 100 |
| PROTEUS COOLING-0750 | 3/4 | 19.1 | 33.5 | 200 | 600 | 5.9 | 150 | 0.52 | 100 |
| PROTEUS COOLING-0500 | 1 | 25.4 | 41.7 | 200 | 600 | 7.9 | 200 | 0.76 | 100 |
| PROTEUS COOLING-1250 | 1-1/4 | 31.8 | 52.3 | 200 | 600 | 10.2 | 260 | 1.19 | 100 |
| PROTEUS COOLING-1500 | 1-1/2 | 38.1 | 58.4 | 200 | 600 | 11.8 | 300 | 1.36 | 100 |
| PROTEUS COOLING-2000 | 2 | 50.8 | 72.9 | 200 | 600 | 16.1 | 410 | 1.85 | 100 |
| PROTEUS COOLING-2500 | 2-1/2 | 63.5 | 85.3 | 200 | 600 | 20.5 | 520 | 2.23 | 100 |
| PROTEUS COOLING-3000 | 3 | 76 | 97.8 | 200 | 600 | 28.0 | 710 | 5.70 | 100 |
| PROTEUS COOLING-4000 | 4 | 102 | 123.8 | 150 | 450 | 33.1 | 840 | 6.90 | 100 |
