CRYST 201 - Supflow

Products

Phthalate free
Transparent visible

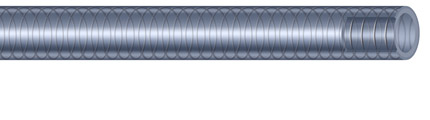

Light, flexible, multipurpose hose

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
CRYST 101-0250	1/4	6	12.2	100	500	28	1.2	30	0.09	200
CRYST 101-0310	5/16	8	14.2	100	500	28	1.6	40	0.11	200
CRYST 101-0380	3/8	10	16	100	500	25	2.0	50	0.12	200
CRYST 101-0630	1/2	13	19	100	500	25	2.4	60	0.15	200
CRYST 101-1000	5/8	16	22.4	100	500	25	2.8	70	0.18	200
CRYST 101-1500	3/4	20	27	90	450	25	3.6	90	0.24	200
CRYST 101-2001	1	25	33	90	450	25	4.4	110	0.34	200
CRYST 101-2003	1-1/4	32	40.4	75	375	25	5.6	140	0.45	200
CRYST 101-2005	1-1/2	38	47	75	375	25	6.8	170	0.54	100
CRYST 101-2009	2	51	60.8	60	300	23	9.2	230	0.87	100
CRYST 101-2011	2-1/2	63	74.8	50	250	23	11.2	280	1.23	100
CRYST 101-2013	3	76	88.2	50	250	20	13.6	340	1.53	100
CRYST 101-2015	3-1/2	90	103	45	225	20	16.4	410	2.03	100
CRYST 101-2016	4	102	115	30	150	20	18.4	460	2.35	100
CRYST 101-2020	5	127	144.4	18	90	26	25.6	640	3.67	100
CRYST 101-2021	6	151	169.6	18	90	26	30.4	760	4.61	100
