Specifically designed for handling in-plant and/or tank truck transfer of wine,beer,potable water and other nonoily,liquid foodstuffs.

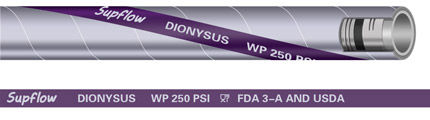

DIONYSUS |
|
|
Phthalate free- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| DIONYSUS -1000 | 1" | 25.4 | 41.1 | 250 | 750 | 27 | 3.0 | 76 | 0.71 | 100 |
| DIONYSUS -1500 | 1-1/2" | 38.1 | 53.6 | 250 | 750 | 27 | 4.1 | 102 | 0.98 | 100 |
| DIONYSUS -2000 | 2" | 50.8 | 68.1 | 250 | 750 | 27 | 7.1 | 178 | 1.38 | 100 |
| DIONYSUS -2500 | 2-1/2" | 63.5 | 81.5 | 250 | 750 | 27 | 10.2 | 254 | 1.78 | 100 |
| DIONYSUS -3000 | 3" | 76.2 | 97.8 | 250 | 750 | 27 | 12.2 | 305 | 2.59 | 100 |
