Designed for medium duty suction and delivery of high quality liquids and foodstuffs,such as fruit juice,wine,beer and alcohol up to 50% compatible with PVC.

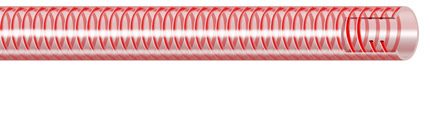

DIONYSUS PVC |
|
|
Transparent with red plastic spiral- Specifications
| Part | ID | OD | Work Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| DIONYSUS PVC-1250 | 1-1/4 | 32 | 40 | 130 | 26 | 8.0 | 200 | 0.35 | 165 |
| DIONYSUS PVC-1380 | * | 35 | 43 | 130 | 26 | 9.0 | 225 | 0.40 | 165 |
| DIONYSUS PVC-1500 | 1-1/2 | 38 | 46 | 130 | 26 | 10.0 | 250 | 0.42 | 165 |
| DIONYSUS PVC-1580 | * | 40 | 48.6 | 130 | 26 | 10.4 | 260 | 0.51 | 165 |
| DIONYSUS PVC1770 | * | 45 | 54 | 130 | 26 | 10.6 | 265 | 0.54 | 165 |
| DIONYSUS PVC-2000 | 2 | 51 | 60 | 116 | 26 | 10.8 | 270 | 0.71 | 165 |
| DIONYSUS PVC-2170 | * | 55 | 64.2 | 116 | 25 | 11.2 | 280 | 0.76 | 165 |
| DIONYSUS PVC-2360 | * | 60 | 69.4 | 116 | 25 | 12.0 | 300 | 0.83 | 165 |
| DIONYSUS PVC-2500 | 2-1/2 | 63 | 72.3 | 116 | 25 | 12.6 | 315 | 0.84 | 165 |
| DIONYSUS PVC-2760 | * | 70 | 80.2 | 102 | 25 | 15.2 | 380 | 1.11 | 165 |
| DIONYSUS PVC-3000 | 3 | 76 | 87 | 102 | 25 | 15.6 | 390 | 1.16 | 165 |
| DIONYSUS PVC-3150 | * | 80 | 92 | 95 | 25 | 16.0 | 400 | 1.26 | 165 |
| DIONYSUS PVC-3540 | 3-1/2 | 90 | 103 | 72 | 25 | 18.0 | 450 | 1.48 | 165 |
| DIONYSUS PVC-4000 | 4 | 102 | 116 | 60 | 25 | 20.0 | 500 | 1.89 | 100 |
| DIONYSUS PVC-4330 | * | 110 | 124.4 | 60 | 23 | 21.2 | 530 | 2.10 | 100 |
| DIONYSUS PVC-4720 | * | 120 | 136 | 60 | 23 | 24.0 | 600 | 2.41 | 100 |
| DIONYSUS PVC-6000 | 6 | 152 | 168 | 45 | 23 | 30.0 | 750 | 3.44 | 100 |
