For suction and delivery of food liquids,beverages,fruit juices,wine and liquors with up to 20% alcohol concentration.Not suitable for the transport of fatty foods,including dairy products.

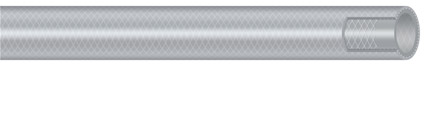

CRYST 101 |
|
|
Phthalate free- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| CRYST 101-0250 | 1/4" | 6 | 12 | 300 | 900 | 1.2 | 30 | 0.07 | 300 |
| CRYST 101-0313 | 5/16" | 7.9 | 14 | 300 | 900 | 1.6 | 40 | 0.08 | 300 |
| CRYST 101-0375 | 3/8" | 9.8 | 16 | 240 | 720 | 2.0 | 50 | 0.10 | 300 |
| CRYST 101-0501 | 1/2" | 12.7 | 19 | 165 | 495 | 2.8 | 70 | 0.12 | 300 |
| CRYST 101-0625 | 5/8" | 15.8 | 22 | 150 | 450 | 3.2 | 80 | 0.15 | 150 |
| CRYST 101-0750 | 3/4" | 19.1 | 26 | 135 | 405 | 4.0 | 100 | 0.20 | 150 |
| CRYST 101-1000 | 1" | 25.4 | 33 | 120 | 360 | 5.2 | 130 | 0.30 | 150 |
| CRYST 101-1250 | 1-1/4" | 31.8 | 42 | 75 | 225 | 6.4 | 160 | 0.47 | 150 |
| CRYST 101-1500 | 1-1/2" | 38.1 | 48 | 60 | 180 | 7.6 | 190 | 0.55 | 150 |
| CRYST 101-2000 | 2" | 50.8 | 62 | 60 | 180 | 10.0 | 250 | 0.86 | 150 |
