Used for transmission of raw and pasteurized milk and other high water content dairy items.

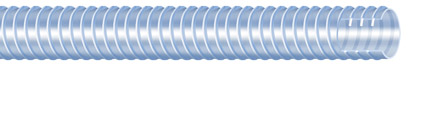

CRYST 102

Resistant to full vacuum
Phthalate free
Capable of handling almost every type of dry bulk food material or liquid in gravity flow and vacuum service

Tube: Clear PVC
Reinforcement: Clear high-density rigid PVC helix
Cover: Clear PVC,corrugated construction
Temp. Range: -15°F to +158°F(-26°C to +70°C)
  • Specifications
Part ID OD Work Pressure Vacuum Resistance Bending Radius Weight Coil Length
Number (in) (mm) (mm) (psi) (in) (in) mm (lb/ft) (ft)
CRYST 102-1000 1" 25.4 32.8 60 29 1.5 38 0.22 100
CRYST 102-1250 1-1/4" 31.8 39.6 50 29 2.6 64 0.28 100
CRYST 102-1500 1-1/2" 38.1 47.8 50 29 3.2 81 0.31 100
CRYST 102-2000 2" 50.8 61.7 40 29 3.2 81 0.51 100
CRYST 102-2500 2-1/2" 63.5 76.2 35 29 4.6 114 0.82 100
CRYST 102-3000 3" 76.2 90.9 35 29 6.6 165 1.05 100
CRYST 102-4000 4" 101.6 119.6 35 29 10.6 264 1.67 100
CRYST 102-6000 6" 152.4 170.7 25 29 29.9 747 2.27 100
