Delivery hose suitable for a wide range of non fatty food products,recommended for cleaning plant and equipment with hot water mixed with steam.

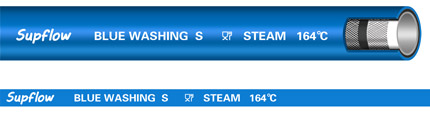

BLUE WASHING S |
|
|
Lightweight, highly flexible - Specifications
| Part | ID | OD |
Work
Pressure (steam) |
Work
Pressure (water) |
Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| BLUE WASHING S-0380 | 3/8 | 9.8 | 20 | 90 | 300 | 900 | 3.0 | 75 | 0.19 | 200 |
| BLUE WASHING S-0500 | 1/2 | 12.7 | 23 | 90 | 300 | 900 | 3.9 | 100 | 0.23 | 200 |
| BLUE WASHING S-0630 | 5/8 | 15.8 | 26 | 90 | 300 | 900 | 4.7 | 120 | 0.27 | 200 |
| BLUE WASHING S-0750 | 3/4 | 19.1 | 31 | 90 | 300 | 900 | 6.3 | 160 | 0.40 | 200 |
| BLUE WASHING S-1000 | 1 | 25.4 | 39.5 | 90 | 300 | 900 | 7.9 | 200 | 0.62 | 200 |
| BLUE WASHING S-1250 | 1-1/4 | 31.8 | 46.5 | 90 | 300 | 900 | 10.2 | 260 | 0.78 | 200 |
| BLUE WASHING S-1500 | 1-1/2 | 38.1 | 54 | 90 | 300 | 900 | 11.8 | 300 | 0.98 | 200 |
| BLUE WASHING S-2000 | 2 | 38.1 | 68 | 90 | 300 | 900 | 15.0 | 380 | 1.36 | 200 |
