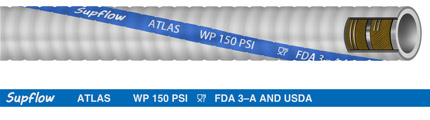

A lightweight, highly flexible hose designed for transferring food materials like milk, drinking etc.
ATLAS |
|
|
Lightweight, highly flexible - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| ATLAS-0750 | 3/4 | 19.1 | 29.4 | 150 | 600 | 29 | 1.8 | 45 | 0.42 | 200 |
| ATLAS-1000 | 1 | 25.4 | 35.7 | 150 | 600 | 29 | 2.0 | 50 | 0.53 | 200 |
| ATLAS-1250 | 1-1/4 | 31.8 | 42 | 150 | 600 | 29 | 2.4 | 60 | 0.64 | 200 |
| ATLAS-1500 | 1-1/2 | 38.1 | 48.8 | 150 | 600 | 29 | 2.5 | 64 | 0.77 | 200 |
| ATLAS-2000 | 2 | 50.8 | 62 | 150 | 600 | 29 | 3.0 | 76 | 1.00 | 200 |
| ATLAS-2500 | 2-1/2 | 63.5 | 76.2 | 150 | 600 | 29 | 5.0 | 127 | 1.46 | 200 |
| ATLAS-3000 | 3 | 76.2 | 89.2 | 150 | 600 | 29 | 5.5 | 140 | 1.95 | 200 |
| ATLAS-4000 | 4 | 101.6 | 115.6 | 150 | 600 | 29 | 7.5 | 191 | 2.59 | 200 |
| ATLAS-5000 | 5 | 127 | 143.8 | 150 | 600 | 29 | 12.0 | 305 | 3.84 | 100 |
| ATLAS-6000 | 6 | 152.4 | 169.2 | 150 | 600 | 29 | 17.0 | 432 | 4.55 | 100 |
| ATLAS-8000 | 8 | 203.4 | 224.4 | 150 | 600 | 29 | 40.0 | 1000 | 8.57 | 100 |
