General-purpose water suction and discharge for medium to heavy-duty applications.

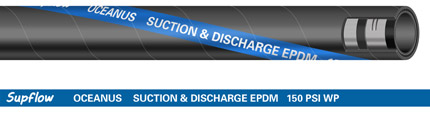

OCEANUS S&D EPDM |
|
|
Caliber is complete - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (PSI) | (PSI) | (in) | (in) | mm | (lb/ft) | (ft) |
| OCEANUS S&D EPDM-1250 | 1-1/4 | 31.8 | 41.4 | 150 | 450 | 29.0 | 4.0 | 102 | 0.53 | 100 |
| OCEANUS S&D EPDM-1500 | 1-1/2 | 38.1 | 47.5 | 150 | 450 | 29.0 | 4.0 | 102 | 0.65 | 100 |
| OCEANUS S&D EPDM-2000 | 2 | 50.8 | 60.7 | 150 | 450 | 29.0 | 7.0 | 178 | 0.87 | 100 |
| OCEANUS S&D EPDM-2500 | 2-1/2 | 63.5 | 73.4 | 150 | 450 | 29.0 | 10.0 | 254 | 1.08 | 100 |
| OCEANUS S&D EPDM-3000 | 3 | 76.2 | 86.9 | 150 | 450 | 29.0 | 14.0 | 356 | 1.44 | 100 |
| OCEANUS S&D EPDM-4000 | 4 | 101.6 | 113.0 | 150 | 450 | 29.0 | 18.0 | 457 | 2.00 | 100 |
| OCEANUS S&D EPDM-6000 | 6 | 152.4 | 167.6 | 150 | 450 | 29.0 | 24.0 | 610 | 4.56 | 100 |
| OCEANUS S&D EPDM-80000 | 8 | 203.0 | 238.0 | 150 | 450 | 29.0 | 47.2 | 1200 | 7.40 | 100 |
| OCEANUS S&D EPDM-10000 | 10 | 254.0 | 278.0 | 150 | 450 | 29.0 | 59.1 | 1500 | 12.20 | 50 |
| OCEANUS S&D EPDM-12000 | 12 | 305.0 | 336.0 | 150 | 450 | 29.0 | 70.9 | 1800 | 18.70 | 50 |
