For use with push-on fittings at working pressures of 300 psi.

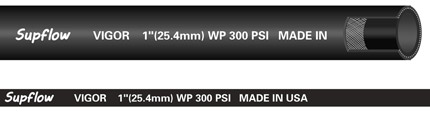

VIGOR 300 |
|
|
Non-conductive tube- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| VIGOR 300-0250 | 1/4 | 6.4 | 13.7 | 300 | 1200 | 2.5 | 64 | 0.09 | 500 |
| VIGOR 300-0310 | 5/16 | 7.9 | 15.7 | 300 | 1200 | 2.5 | 64 | 0.12 | 500 |
| VIGOR 300-0380 | 3/8 | 9.5 | 17.5 | 300 | 1200 | 3.0 | 76 | 0.14 | 500 |
| VIGOR 300-0500 | 1/2 | 12.7 | 20.6 | 300 | 1200 | 5.0 | 127 | 0.17 | 500 |
| VIGOR 300-0630 | 5/8 | 15.9 | 23.6 | 300 | 1200 | 6.0 | 152 | 0.20 | 500 |
| VIGOR 300-0750 | 3/4 | 19.1 | 27.2 | 300 | 1200 | 7.0 | 178 | 0.26 | 500 |
