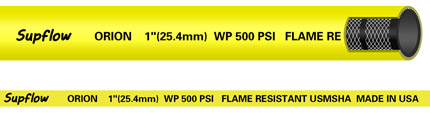

A premium-quality,multipurpose industrial hose with a wide range of applications in factories,construction, agriculture,quarries,mines,railroads,the oil and gas industry,and shipbuilding.
ORION |
|
|
High resistance to abrasion- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| ORION-0190 | 3/16 | 4.8 | 11.9 | 500 | 2000 | 0.08 | 500 |
| ORION-0250 | 1/4 | 6.4 | 15.5 | 500 | 2000 | 0.17 | 500 |
| ORION-0310 | 5/16 | 7.9 | 17.5 | 500 | 2000 | 0.20 | 500 |
| ORION-0380 | 3/8 | 9.5 | 18.6 | 500 | 2000 | 0.22 | 500 |
| ORION-0500 | 1/2 | 12.7 | 22.6 | 500 | 2000 | 0.28 | 500 |
| ORION-0630 | 5/8 | 15.9 | 26.9 | 500 | 2000 | 0.35 | 500 |
| ORION-0750 | 3/4 | 19.1 | 30.2 | 500 | 2000 | 0.41 | 500 |
| ORION-1000 | 1 | 25.4 | 37.8 | 500 | 2000 | 0.58 | 450 |
| ORION-1250 | 1-1/4 | 31.8 | 45.6 | 500 | 2000 | 0.79 | 400 |
| ORION-1500 | 1-1/2 | 38.1 | 51.8 | 500 | 2000 | 0.85 | 300 |
| ORION-2000 | 2 | 50.8 | 66.6 | 500 | 2000 | 1.22 | 200 |
