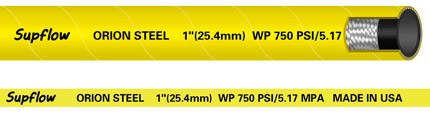

A heavy-duty,wrapped finish,single wire-braid or spiral ply wire air hose for higher pressure service in severe industrial applications including service in mines,quarries and construction jobs.
ORION STEEL |
|
|
High resistance to abrasion- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| ORION STEEL-0500 | 1/2 | 12.7 | 23.1 | 750 | 3000 | 0.34 | 100.0 |
| ORION STEEL-0750 | 3/4 | 19.1 | 29 | 750 | 3000 | 0.45 | 100.0 |
| ORION STEEL-1000 | 1 | 25.4 | 36.6 | 750 | 3000 | 0.66 | 100.0 |
| ORION STEEL-1250 | 1-1/4 | 31.8 | 46 | 750 | 3000 | 0.98 | 100.0 |
| ORION STEEL-1500 | 1-1/2 | 38.1 | 50.2 | 750 | 3000 | 0.97 | 100.0 |
| ORION STEEL-2000 | 2 | 50.8 | 67.6 | 500 | 2000 | 1.59 | 50.0 |
| ORION STEEL-2500 | 2-1/2 | 63.5 | 84.6 | 500 | 2000 | 2.63 | 50.0 |
| ORION STEEL-3000 | 3 | 76.2 | 96.8 | 500 | 2000 | 3.07 | 50.0 |
| ORION STEEL-4000 | 4 | 101.6 | 124.5 | 500 | 2000 | 4.36 | 50.0 |
