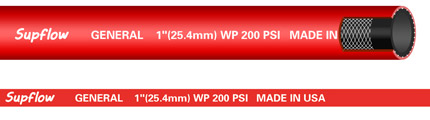

An economical air and water hose,GENERAL is for a wide range of industrial,construction and agricultural applications.
GENERAL 150/200/300 |
|
|
Light weight, highly flexible - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| GENERAL-0190 | 3/16 | 4.8 | 11.2 | 200 | 800 | 0.08 | 500 |
| GENERAL-0250 | 1/4 | 6.4 | 12.7 | 200 | 800 | 0.09 | 500 |
| GENERAL-0310 | 5/16 | 7.9 | 14.7 | 200 | 800 | 0.12 | 500 |
| GENERAL-0380 | 3/8 | 9.5 | 17.0 | 200 | 800 | 0.15 | 500 |
| GENERAL-0500 | 1/2 | 12.7 | 20.6 | 200 | 800 | 0.20 | 500 |
| GENERAL-0630 | 5/8 | 15.9 | 24.6 | 200 | 800 | 0.27 | 500 |
| GENERAL-0750 | 3/4 | 19.1 | 28.5 | 200 | 800 | 0.34 | 500 |
| GENERAL-1000 | 1 | 25.4 | 36.8 | 200 | 800 | 0.54 | 450 |
| GENERAL-1250 | 1-1/4 | 31.8 | 44.0 | 200 | 800 | 0.75 | 200 |
| GENERAL-1500 | 1-1/2 | 38.1 | 50.3 | 200 | 800 | 0.86 | 300 |
| GENERAL-2000 | 2 | 50.8 | 63.5 | 200 | 800 | 1.16 | 200 |
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| GENERAL-0250 | 1/4 | 6.4 | 13.5 | 250 | 1000 | 0.11 | 500 |
| GENERAL-0310 | 5/16 | 7.9 | 15.0 | 250 | 1000 | 0.13 | 500 |
| GENERAL-0380 | 3/8 | 9.5 | 17.8 | 250 | 1000 | 0.17 | 500 |
| GENERAL-0500 | 1/2 | 12.7 | 21.3 | 250 | 1000 | 0.22 | 500 |
| GENERAL-0630 | 5/8 | 15.9 | 24.9 | 250 | 1000 | 0.27 | 500 |
| GENERAL-0750 | 3/4 | 19.1 | 29.0 | 250 | 1000 | 0.35 | 500 |
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| GENERAL-0250 | 1/4 | 6.4 | 13.5 | 300 | 1200 | 0.10 | 500 |
| GENERAL-0380 | 3/8 | 9.5 | 17.8 | 300 | 1200 | 0.17 | 500 |
| GENERAL-0500 | 1/2 | 12.7 | 21.3 | 300 | 1200 | 0.22 | 500 |
| GENERAL-0750 | 3/4 | 19.1 | 29.2 | 300 | 1200 | 0.37 | 500 |
| GENERAL-1000 | 1 | 25.4 | 37.3 | 300 | 1200 | 0.58 | 450 |
