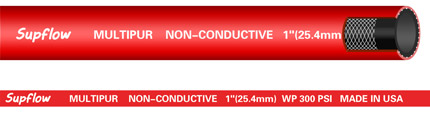

A good-quality,economical general purpose hose for industrial air service,compressor lines,pneumatic tools,low-pressure spray and many other applications where the need for oil resistance is moderate.
MULTIPUR 200/300 |
|
|
lightweight, highly flexible - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| MULTIPUR-0190 | 3/16 | 4.8 | 11.2 | 200 | 800 | 0.07 | 500 |
| MULTIPUR-0250 | 1/4 | 6.4 | 13.5 | 200 | 800 | 0.10 | 500 |
| MULTIPUR-0310 | 5/16 | 7.9 | 16 | 200 | 800 | 0.14 | 500 |
| MULTIPUR-0380 | 3/8 | 9.5 | 17.5 | 200 | 800 | 0.15 | 500 |
| MULTIPUR-0500 | 1/2 | 12.7 | 21.3 | 200 | 800 | 0.21 | 500 |
| MULTIPUR-0630 | 5/8 | 15.9 | 25.4 | 200 | 800 | 0.27 | 500 |
| MULTIPUR-0750 | 3/4 | 19.1 | 28.7 | 200 | 800 | 0.38 | 500 |
| MULTIPUR-1000 | 1 | 25.4 | 37.3 | 200 | 800 | 0.58 | 450 |
| Part | ID | OD | Work Pressure | Burst Pressure | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (lb/ft) | (ft) |
| MULTIPUR-0250 | 1/4 | 6.4 | 13.7 | 300 | 1200 | 0.14 | 500 |
| MULTIPUR-0310 | 5/16 | 7.9 | 16.3 | 300 | 1200 | 0.18 | 500 |
| MULTIPUR-0380 | 3/8 | 9.5 | 17.5 | 300 | 1200 | 0.19 | 500 |
| MULTIPUR-0500 | 1/2 | 12.7 | 21.8 | 300 | 1200 | 0.26 | 500 |
| MULTIPUR-0630 | 5/8 | 15.9 | 25.9 | 300 | 1200 | 0.33 | 500 |
| MULTIPUR-0750 | 3/4 | 19.1 | 30.2 | 300 | 1200 | 0.42 | 500 |
| MULTIPUR-1000 | 1 | 25.4 | 38.1 | 300 | 1200 | 0.62 | 450 |
| MULTIPUR-1250 | 1-1/4 | 31.8 | 45.6 | 300 | 1200 | 0.84 | 400 |
| MULTIPUR-1500 | 1-1/2 | 38.1 | 53.2 | 300 | 1200 | 1.01 | 300 |
| MULTIPUR-2000 | 2 | 50.8 | 63.5 | 300 | 1200 | 1.02 | 200 |
