Transport fluids at low pressure and widely used in the medical,biomedical,conmetics and food field.Not applicable in continuous steam application and high-pressure environment.

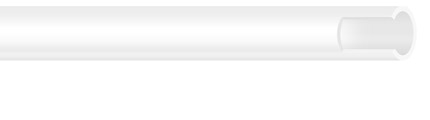

PURE SIL-S |
|
|
Transparent,easy to observe the flowment of liquid- Specifications
| Part | ID | OD | Coil Length |
|---|---|---|---|
| Number | (mm) | (mm) | (ft) |
| PURE SIL-S-0020 | 0.5 | 1.5 | 50 |
| PURE SIL-S-0021 | 0.5 | 2.1 | 50 |
| PURE SIL-S-0030 | 0.8 | 2.4 | 50 |
| PURE SIL-S-0040 | 1.0 | 2.0 | 50 |
| PURE SIL-S-0041 | 1.0 | 3.0 | 50 |
| PURE SIL-S-0060 | 1.5 | 2.5 | 50 |
| PURE SIL-S-0061 | 1.5 | 3.0 | 50 |
| PURE SIL-S-0062 | 1.5 | 3.5 | 50 |
| PURE SIL-S-0063 | 1.6 | 3.2 | 50 |
| PURE SIL-S-0064 | 1.6 | 4.8 | 50 |
| PURE SIL-S-0070 | 2.0 | 4.0 | 50 |
| PURE SIL-S-0071 | 2.0 | 6.0 | 50 |
| PURE SIL-S-0090 | 2.4 | 4.0 | 50 |
| PURE SIL-S-0120 | 3.0 | 5.0 | 50 |
| PURE SIL-S-0121 | 3.0 | 6.0 | 50 |
| PURE SIL-S-0122 | 3.0 | 7.0 | 50 |
| PURE SIL-S-0125 | 3.2 | 4.8 | 50 |
| PURE SIL-S-0126 | 3.2 | 5.2 | 50 |
| PURE SIL-S-0127 | 3.2 | 6.4 | 50 |
| PURE SIL-S-0157 | 4.0 | 5.6 | 50 |
| PURE SIL-S-0158 | 4.0 | 6.0 | 50 |
| PURE SIL-S-0159 | 4.0 | 7.0 | 50 |
| PURE SIL-S-0160 | 4.0 | 8.0 | 50 |
| PURE SIL-S-0161 | 4.0 | 10.0 | 50 |
| PURE SIL-S-0188 | 4.8 | 6.4 | 50 |
| PURE SIL-S-0189 | 4.8 | 8.0 | 50 |
| PURE SIL-S-0190 | 4.8 | 9.6 | 50 |
| PURE SIL-S-0196 | 5.0 | 7.0 | 50 |
| PURE SIL-S-0197 | 5.0 | 8.0 | 50 |
| PURE SIL-S-0198 | 5.0 | 9.0 | 50 |
| PURE SIL-S-0199 | 5.0 | 10.0 | 50 |
| PURE SIL-S-0236 | 6.0 | 8.0 | 50 |
| PURE SIL-S-0237 | 6.0 | 9.0 | 50 |
| PURE SIL-S-0238 | 6.0 | 10.0 | 50 |
| PURE SIL-S-0239 | 6.0 | 12.0 | 50 |
| PURE SIL-S-0248 | 6.3 | 9.5 | 50 |
| PURE SIL-S-0249 | 6.3 | 11.1 | 50 |
| PURE SIL-S-0250 | 6.3 | 12.7 | 50 |
| PURE SIL-S-0252 | 6.4 | 8.0 | 50 |
| PURE SIL-S-0275 | 7.0 | 10.0 | 50 |
| PURE SIL-S-0276 | 7.0 | 11.0 | 50 |
| PURE SIL-S-0315 | 8.0 | 10.0 | 50 |
| PURE SIL-S-0316 | 8.0 | 11.2 | 50 |
| PURE SIL-S-0317 | 8.0 | 12.0 | 50 |
| PURE SIL-S-0318 | 8.0 | 12.8 | 50 |
| PURE SIL-S-0319 | 8.0 | 13.0 | 50 |
| PURE SIL-S-0320 | 8.0 | 14.0 | 50 |
| PURE SIL-S-0321 | 8.0 | 16.0 | 50 |
| PURE SIL-S-0354 | 9.0 | 13.0 | 50 |
| PURE SIL-S-0355 | 9.0 | 15.0 | 50 |
| PURE SIL-S-0375 | 9.5 | 15.9 | 50 |
| PURE SIL-S-0378 | 9.6 | 12.8 | 50 |
| PURE SIL-S-0379 | 9.6 | 14.4 | 50 |
| PURE SIL-S-0393 | 10.0 | 12.0 | 50 |
| PURE SIL-S-0394 | 10.0 | 14.0 | 50 |
| PURE SIL-S-0395 | 10.0 | 15.0 | 50 |
| PURE SIL-S-0396 | 10.0 | 16.0 | 50 |
| PURE SIL-S-0397 | 10.0 | 18.0 | 50 |
| PURE SIL-S-0472 | 12.0 | 16.0 | 50 |
| PURE SIL-S-0500 | 12.7 | 19.1 | 50 |
| PURE SIL-S-0503 | 12.8 | 16.0 | 50 |
| PURE SIL-S-0504 | 12.8 | 17.6 | 50 |
| PURE SIL-S-0512 | 13.0 | 19.0 | 50 |
| PURE SIL-S-0591 | 15.0 | 21.0 | 50 |
| PURE SIL-S-0625 | 16.0 | 20.8 | 50 |
| PURE SIL-S-0626 | 16.0 | 22.0 | 50 |
| PURE SIL-S-0750 | 19.0 | 25.4 | 50 |
| PURE SIL-S-0787 | 20.0 | 26.0 | 50 |
| PURE SIL-S-0866 | 22.0 | 28.0 | 50 |
| PURE SIL-S-1000 | 25.0 | 31.0 | 50 |
