Used in the food,beverage,medical,biomedical,conmetics field.

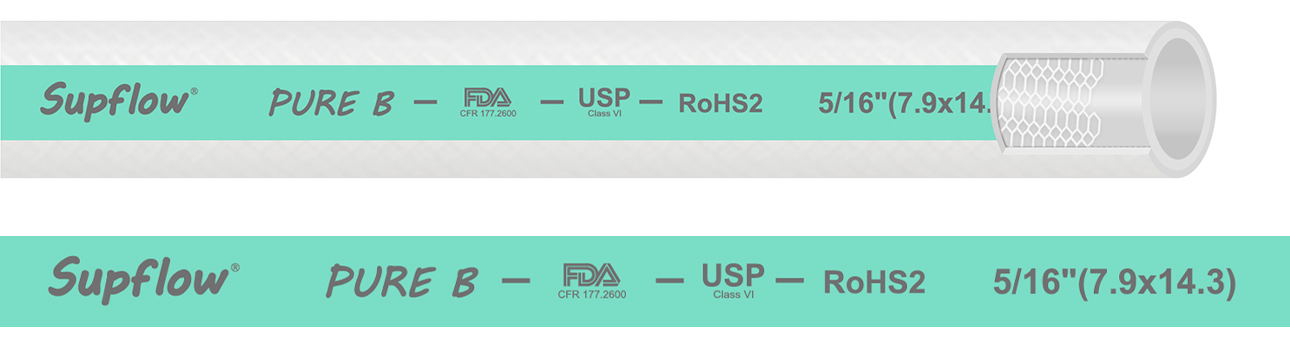

PURE B |
|
|
Pharmaceutical and Biotechnological processes- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (mm) | (lb/ft) | (ft) |
| PURE B-0190 | 3/16" | 4.8 | 10.6 | 150 | 450 | 70 | 0.06 | 66.0 |
| PURE B-0250 | 1/4" | 6.3 | 12.3 | 150 | 450 | 80 | 0.08 | 66.0 |
| PURE B-0310 | 5/16" | 7.9 | 14.3 | 150 | 450 | 90 | 0.10 | 66.0 |
| PURE B-0380 | 3/8" | 9.5 | 16.0 | 150 | 450 | 100 | 0.11 | 66.0 |
| PURE B-0500 | 1/2" | 12.7 | 19.5 | 75 | 225 | 130 | 0.14 | 66.0 |
| PURE B-0630 | 5/8" | 15.9 | 24.0 | 75 | 225 | 150 | 0.21 | 66.0 |
| PURE B-0750 | 3/4" | 19.0 | 28.0 | 75 | 225 | 180 | 0.28 | 66.0 |
| PURE B-1000 | 1" | 25.4 | 35.5 | 75 | 225 | 220 | 0.40 | 66.0 |
| PURE B-1250 | 1-1/4" | 32.0 | 43.5 | 75 | 225 | 250 | 0.57 | 66.0 |
| PURE B-1500 | 1-1/2" | 38.1 | 50.5 | 75 | 225 | 310 | 0.71 | 66.0 |
| PURE B-2000 | 2" | 50.8 | 64.5 | 45 | 135 | 550 | 1.06 | 16.5 |
