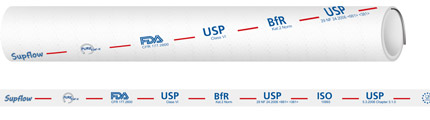

Silicone Hose with Stainless Steel Helix -6.2mm.For food,beverages,cosmetics,medicine,pharmaceutical industries. It is recommended for vacuum.Suitable for CIP and SIP cleaning.
PURE SW-X |
|
|
Odorless without smell- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) |
| PURE SW-X-0500 | 1/2 | 12.7 | 25.1 | 150 | 600 | 29 | 1.8 | 45 | 0.27 |
| PURE SW-X-0750 | 3/4 | 19.05 | 31.45 | 150 | 600 | 29 | 2.6 | 65 | 0.40 |
| PURE SW-X-1000 | 1 | 25.4 | 37.8 | 150 | 600 | 29 | 3.1 | 80 | 0.60 |
| PURE SW-X-1250 | 1-1/4 | 31.8 | 44.2 | 150 | 600 | 29 | 4.7 | 120 | 0.68 |
| PURE SW-X-1500 | 1-1/2 | 38.1 | 50.5 | 150 | 600 | 29 | 5.9 | 150 | 0.95 |
| PURE SW-X-2000 | 2 | 50.8 | 63.2 | 150 | 600 | 29 | 7.1 | 180 | 1.12 |
