For food,beverages,cosmetics,medicine,pharmaceutical industries. It is recommended for vacuum.Suitable for CIP and SIP cleaning.

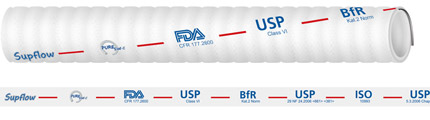

PURE SW-C

Odorless without smell
Free of plasticzier and additives
Resistant to vacuun pressure
Use high-temperatuer and high-pressure steam to sterilize the hose
Corrugated appearance and have soft features to bend as much as possible

Construction:	Manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement,corrugated appearance
Temp. Range:	-76°F to +392°F(-60°C to +200°C)
Color:	Transparent(Coloured covers available)
Standard:	FDA;USP;BFR;European Pharmacopeia 3.1.9;Journal Officiel Brochure 1227

Specifications

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
PURE SW-C-0500	1/2	12.7	22.5	150	450	26.6	1.4	35	0.52
PURE SW-C-0750	3/4	19.05	28.85	150	450	26.6	2.0	50	0.74
PURE SW-C-1000	1	25.4	35.2	150	450	26.6	2.6	65	0.89
PURE SW-C-1250	1-1/4	31.8	41.6	150	450	26.6	3.8	96	1.12
PURE SW-C-1500	1-1/2	38.1	47.9	150	450	26.6	4.3	110	1.34
PURE SW-C-2000	2	50.8	60.6	150	450	26.6	6.7	170	1.64
