Standard wall PTFE tubing for transfer of medicals,dairy and cosmetic products,widely used in heat pneumatic,food and chemical industry.

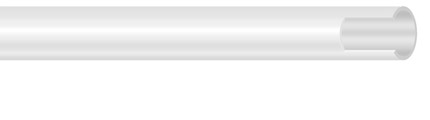

PHARMTCH T01-PTFE Thin Wall Tube |
|
|
Smooth inner wall- Specifications
| Part | IN | OD | Work Pressure | Coil Length |
|---|---|---|---|---|
| Number | (mm) | (mm) | (psi) | (ft) |
| PHARMTCH T01-0040 | 1 | 3 | 4500 | 328 |
| PHARMTCH T01-0080 | 2 | 4 | 3450 | 328 |
| PHARMTCH T01-0120 | 3 | 5 | 2700 | 328 |
| PHARMTCH T01-0160 | 4 | 6 | 2250 | 820 |
| PHARMTCH T01-0200 | 5 | 7 | 1950 | 738 |
| PHARMTCH T01-0240 | 6 | 8 | 1650 | 656 |
| PHARMTCH T01-0310 | 8 | 10 | 1350 | 492 |
| PHARMTCH T01-0380 | 10 | 12 | 1200 | 410 |
| PHARMTCH T01-0470 | 12 | 14 | 1050 | 328 |
| PHARMTCH T01-0550 | 14 | 16 | 900 | 279 |
| PHARMTCH T01-0630 | 16 | 18 | 750 | 246 |
| PHARMTCH T01-0710 | 18 | 20 | 750 | 230 |
| PHARMTCH T01-0790 | 20 | 22 | 600 | 197 |
| PHARMTCH T01-0870 | 22 | 25 | 900 | 115 |
| PHARMTCH T01-1000 | 25 | 28 | 750 | 108 |
| PHARMTCH T01-1020 | 26 | 28 | 450 | 66 |
| PHARMTCH T01-1180 | 30 | 34 | 900 | 66 |
| PHARMTCH T01-1250 | 32 | 36 | 750 | 66 |
| PHARMTCH T01-1500 | 38 | 42 | 600 | 66 |
| PHARMTCH T01-1580 | 40 | 44 | 600 | 66 |
| PHARMTCH T01-1750 | 44 | 50 | 900 | 66 |
| PHARMTCH T01-1890 | 48 | 52 | 600 | 66 |
| PHARMTCH T01-2000 | 50 | 54 | 450 | 49 |
