For pharmaceutical, food, chemical, beverage and an almost endless list of applications

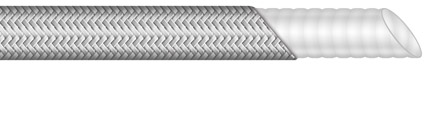

PHARMTCH SC01 |
|
|
Low profile liner self-draining, easy clean solution for a wide range
of applications- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| PHARMTCH SC01-0250 | 1/4" | 7.1 | 12.3 | 2500 | 7500 | 0.7 | 18 | 0.2 | ||
| PHARMTCH SC01-0380 | 3/8" | 9.5 | 15.25 | 2000 | 6000 | 0.8 | 20 | 0.2 | ||
| PHARMTCH SC01-0500 | 1/2" | 12.8 | 18.8 | 1500 | 4500 | 1.0 | 25 | 0.4 | ||
| PHARMTCH SC01-0630 | 5/8" | 15.9 | 22.1 | 1200 | 3600 | 2.0 | 51 | 0.5 | ||
| PHARMTCH SC01-0750 | 3/4" | 19.1 | 24.7 | 1000 | 3000 | 2.5 | 64 | 0.6 | ||
| PHARMTCH SC01-0870 | 7/8" | 22.4 | 28.7 | 825 | 2475 | 3.0 | 76 | 0.7 | ||
| PHARMTCH SC01-0500 | 1" | 25.4 | 32.8 | 670 | 2010 | 3.5 | 89 | 0.8 | ||
| PHARMTCH SC01-1250 | 1-1/4 | 32.2 | 40.7 | 490 | 1470 | 4.9 | 127 | 0.9 | ||
| PHARMTCH SC01-1500 | 1-1/2 | 38.1 | 48.3 | 435 | 1305 | 6.0 | 152 | 1.2 | ||
| PHARMTCH SC01-2000 | 2" | 51.4 | 61.5 | 330 | 990 | 7.9 | 200 | 1.5 | ||
