It is recommended for cleaning,thawing,blowout service,steam pumps,hoists and other applications involving steam.

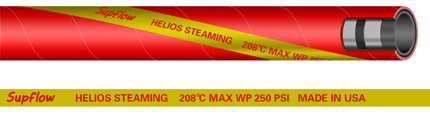

HELIOS STEAMING |
|
|
Very high temperature resistance- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| HELIOS-0500 | 1/2 | 12.7 | 24.6 | 250 | 2500 | 7.0 | 178 | 0.33 | 200 |
| HELIOS-0750 | 3/4 | 19.1 | 31.8 | 250 | 2500 | 9.5 | 241 | 0.49 | 200 |
| HELIOS-1000 | 1 | 25.4 | 38.1 | 250 | 2500 | 12.0 | 305 | 0.61 | 200 |
| HELIOS-1250 | 1-1/4 | 31.8 | 46 | 250 | 2500 | 16.5 | 419 | 0.83 | 100 |
| HELIOS-1500 | 1-1/2 | 38.1 | 53.1 | 250 | 2500 | 20.0 | 508 | 1.03 | 100 |
| HELIOS-2000 | 2 | 50.8 | 70.6 | 250 | 2500 | 25.0 | 635 | 1.88 | 100 |
| HELIOS-2500 | 2-1/2 | 63.5 | 83.3 | 250 | 2500 | 30.0 | 762 | 2.33 | 100 |
| HELIOS-3000 | 3 | 76.2 | 95.8 | 250 | 2500 | 36.0 | 914 | 2.73 | 100 |
