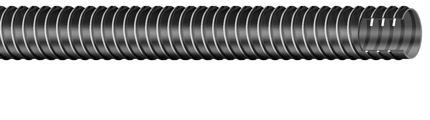

The Perseus light hose is used for a variety of abrasive,material-handling applications to transfer sand,gravel,cement,fly ash,glass,metals,plastic pellets,fertilizers,rock salts and slurries.
PERSEUS LIGHT |
|
|
Lightweight, easy to install- Specifications
| Part | ID | OD | Work Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| PERSEUS LIGHT-1250 | 1-1/4 | 31.8 | 41.4 | 45 | 29 | 3.0 | 76 | 0.34 | 100 |
| PERSEUS LIGHT-1500 | 1-1/2 | 38.1 | 48 | 40 | 29 | 3.0 | 76 | 0.40 | 100 |
| PERSEUS LIGHT-2000 | 2 | 50.8 | 62.7 | 40 | 29 | 2.5 | 63 | 0.67 | 100 |
| PERSEUS LIGHT-2500 | 2-1/2 | 63.5 | 77.5 | 35 | 29 | 4.0 | 101 | 0.87 | 100 |
| PERSEUS LIGHT-3000 | 3 | 76.2 | 93.7 | 30 | 29 | 6.0 | 152 | 1.16 | 100 |
| PERSEUS LIGHT-4000 | 4 | 101.6 | 122.2 | 30 | 29 | 7.0 | 177 | 2.16 | 100 |
| PERSEUS LIGHT-5000 | 5 | 127 | 146.8 | 30 | 29 | 8.0 | 203 | 2.60 | 100 |
| PERSEUS LIGHT-6000 | 6 | 152.4 | 179.8 | 25 | 29 | 8.0 | 203 | 3.43 | 100 |
| PERSEUS LIGHT-8000 | 8 | 203.2 | 234.2 | 20 | 29 | 18.0 | 456 | 5.84 | 20 |
| PERSEUS LIGHT-10000 | 10 | 254 | 284.7 | 20 | 29 | 36.0 | 912 | 7.96 | 20 |
