FDA approved food hose designed for suction and delivery of non-fatty and non-oily foods ,liquids such as wine, juice, potable water in brewery and winery transfer applications.

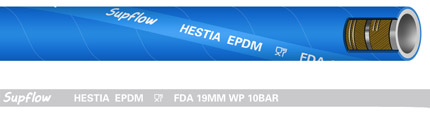

HESTIA EPDM |
FDA approved food hose designed for suction and delivery of non-fatty and non-oily foods ,liquids such as wine, juice, potable water in brewery and winery transfer applications. NOT recommended for fatty foods. White and smooth tube will not impart taste or odor,and is resistant to bacteria and microbes. The EPDM cover is resistant to abrasion,mild chenicals and ozone.Complies with FDA requirements.Phthalate free . |
|
- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in.) | (mm) | (lb/ft) | (ft) |
| HESTIA EPDM-0500 | 1/2 | 12.7 | 24 | 150 | 450 | 29 | 45 | * | 200 |
| HESTIA EPDM-0750 | 3/4 | 19.7 | 32 | 150 | 450 | 29 | 65 | * | 200 |
| HESTIA EPDM-1000 | 1 | 25.4 | 38 | 150 | 450 | 29 | 90 | * | 200 |
| HESTIA EPDM-1250 | 1-1/4 | 31.8 | 46 | 150 | 450 | 29 | 110 | * | 200 |
| HESTIA EPDM-1500 | 1-1/2 | 38.1 | 52 | 150 | 450 | 29 | 135 | * | 200 |
| HESTIA EPDM-2000 | 2 | 50.8 | 66 | 150 | 450 | 29 | 180 | * | 200 |
| HESTIA EPDM-2500 | 2-1/2 | 63.5 | 80 | 150 | 450 | 29 | 220 | * | 200 |
| HESTIA EPDM-3000 | 3 | 76.2 | 93 | 150 | 450 | 29 | 265 | * | 200 |
| HESTIA EPDM-4000 | 4 | 101.6 | 120 | 150 | 45029 | 29 | 355 | * | 200 |
