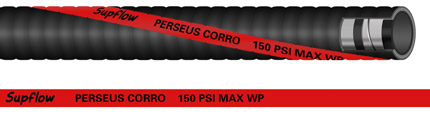

Perseus corro material handling hose with the Goodyear Engineered Products 150 psi bolt-on split flange coupling is an easy and economical choice.
PERSEUS CORRO |
|
|
Very good pressure resistance to pressure- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| PERSEUS CORRO-3000 | 3 | 76.2 | 111.5 | 150 | 450 | 29 | 16 | 406 | 4.63 | 100 |
| PERSEUS CORRO-4000 | 4 | 101.6 | 133.4 | 150 | 450 | 29 | 20 | 508 | 5.67 | 100 |
| PERSEUS CORRO-6000 | 6 | 152.4 | 187.2 | 150 | 450 | 29 | 36 | 914 | 9.48 | 100 |
| PERSEUS CORRO-8000 | 8 | 203.4 | 239.8 | 150 | 450 | 29 | 48 | 1219 | 14.20 | 100 |
| PERSEUS CORRO-10000 | 10 | 254 | 289.1 | 150 | 450 | 29 | 60 | 1524 | 16.63 | 50 |
| PERSEUS CORRO-12000 | 12 | 304.8 | 350.8 | 100 | 450 | 29 | 72 | 1829 | 23.40 | 50 |
| PERSEUS CORRO-16000 | 16 | 407.8 | 464.8 | 100 | 450 | 29 | 96 | 2438 | 40.60 | 50 |
