A high-quality flexible hose for replacing cast iron pipes for the transfer of abrasive materials or corrosive chemicals where installation requires minimum bends or where the inherent flexibility of a durable rubber hose is required.

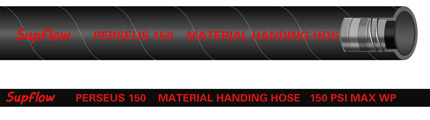

PERSEUS 150 |
|
|
High quality- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| PERSEUS 150-2000 | 2 | 50.8 | 75.4 | 150 | 450 | 29 | 12.0 | 304.8 | 2.11 | 100 |
| PERSEUS 150-500 | 2-1/2 | 63.5 | 87.4 | 150 | 450 | 29 | 15.0 | 381 | 2.65 | 100 |
| PERSEUS 150-3000 | 3 | 76.2 | 100.1 | 150 | 450 | 29 | 18.0 | 457.2 | 3.05 | 100 |
| PERSEUS 150-4000 | 4 | 101.6 | 127 | 150 | 450 | 29 | 24.0 | 609.6 | 4.10 | 100 |
| PERSEUS 150-4500 | 4-1/2 | 114.3 | 140.5 | 150 | 450 | 29 | 27.0 | 685.8 | 4.91 | 100 |
| PERSEUS 150-5000 | 5 | 127 | 154.7 | 150 | 450 | 29 | 30.0 | 762 | 6.01 | 100 |
| PERSEUS 150-6000 | 6 | 152.4 | 183.4 | 150 | 450 | 29 | 36.0 | 914.4 | 8.13 | 100 |
| PERSEUS 150-6630 | 6-5/8 | 168.3 | 199.1 | 150 | 450 | 29 | 40.0 | 1016 | 9.34 | 100 |
| PERSEUS 150-8000 | 8 | 203.2 | 230.1 | 150 | 450 | 29 | 48.0 | 1219 | 11.51 | 100 |
| PERSEUS 150-8630 | 8-5/8 | 219.1 | 254.8 | 150 | 450 | 29 | 52.0 | 1320 | 14.35 | 100 |
| PERSEUS 150-10000 | 10 | 254 | 289.1 | 150 | 450 | 29 | 60.0 | 1524 | 16.40 | 100 |
| PERSEUS 150-12000 | 12 | 304.8 | 342.1 | 150 | 450 | 29 | 72.0 | 1828.8 | 19.83 | 100 |
