For handling wet concrete with high head pressures at the critical flex areas of a concrete boom truck and as a discharge hose on the delivery end of high-pressure concrete pumps.

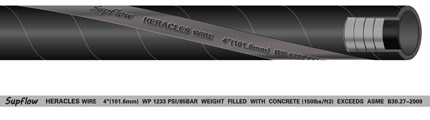

HERACLES WIRE |
|
|
Highly flexible - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | mm | (lb/ft) | (ft) |
| HERACLES WIRE-2000 | 2 | 50.8 | 76.4 | 1233 | 2466 | 9 | 275 | 2.75 | 50 |
| HERACLES WIRE-2500 | 2-1/2 | 63.5 | 88.9 | 1233 | 2466 | 12 | 300 | 3.28 | 50 |
| HERACLES WIRE-3000 | 3 | 76.2 | 101.3 | 1233 | 2466 | 14 | 350 | 3.80 | 50 |
| HERACLES WIRE-4000 | 4 | 101.6 | 127.4 | 1233 | 2466 | 16 | 400 | 4.90 | 50 |
| HERACLES WIRE-5000 | 5 | 127 | 152.5 | 1233 | 2466 | 20 | 500 | 5.98 | 50 |
