It is manufactured from biopharmaceutical grade elastomer meeting or exceeding pharmacopeia USP 23 class VI, FDA21CFR-177.2600.
PURE SW |

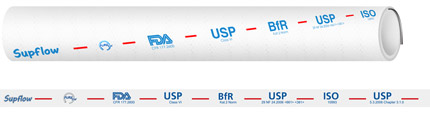

It is manufactured from biopharmaceutical grade elastomer meeting or exceeding pharmacopeia USP 23 class VI, FDA21CFR-177.2600. The hose is designed for maximum flexibility when utilized in fluid transfer, filling, and moving steam or air in pharmaceutical and biotech manufacturing processes. The high purity platinum cured silicone hose imparts no taste or odor and features high tear resistance and hydrophobic properties, making it ideal for use in the medical, semiconductor, cosmetics, food, beverage and dairy industries. |
|
- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (psi) | (mm) | (lb/ft) | (ft) |
| PURE SW-0380 | 3/8 | 9.5 | 19.3 | 150 | 450 | 9.86 | 35 | 0.17 | 13 |
| PURE SW-0500 | 1/2 | 12.7 | 22.5 | 150 | 450 | 9.86 | 35 | 0.24 | 13 |
| PURE SW-0750 | 3/4 | 19 | 28.8 | 150 | 450 | 9.86 | 50 | 0.34 | 13 |
| PURE SW-1000 | 1 | 25.4 | 35.2 | 150 | 450 | 9.86 | 65 | 0.4 | 13 |
| PURE SW-1250 | 1-1/4 | 31.8 | 41.6 | 150 | 450 | 9.86 | 96 | 0.5 | 13 |
| PURE SW-1500 | 1-1/2 | 38.1 | 47.9 | 150 | 450 | 9.86 | 110 | 0.6 | 13 |
| PURE SW-2000 | 2 | 50.8 | 60.6 | 150 | 450 | 9.86 | 170 | 0.74 | 13 |
| PURE SW-2500 | 2-1/2 | 63.5 | 75.9 | 100 | 400 | 9.86 | 220 | 1.28 | 13 |
| PURE SW-3000 | 3 | 76.2 | 88.6 | 60 | 240 | 9.86 | 250 | 1.65 | 13 |
| PURE SW-4000 | 4 | 102 | 114.4 | 45 | 180 | 9.86 | 360 | 1.98 | 13 |
