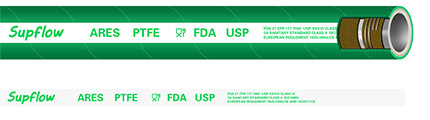

ARES PTFE - Supflow

Applications

Resistant to high temperature and oxidation.Excellent chemical and mechanical properties
Phthalates free tube, conform to RoHS guideline

Tube:	TEFLON PTFE ,co-extruded clear/white pigmented,smooth.
Reinforcement:	Synthetic plies,galvanized wire helices,a/s copper wires to discharge static electricity
Cover:	Synthetic rubber,smooth,green,abrasion,ageing and ozone resistant
Temp. Range：	-40°F to 302°F(-40°C to 150°C)
Standard:	FDA 21 CFR 177.1550，USP XXXVI class VI, ISO 10993-5,10,11：2009， 1935/2004 / CE，10/2011 / CE，3A，GB4806.7-2016、GB31604.30-2016

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius	Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(psi)	(in)	(lb/ft)	(ft)
ARES-0500	1/2	13	25	200	600	13	3	0.34	130
ARES-0750	3/4	19	31	200	600	13	4	0.44	130
ARES-1000	1	25	37	200	600	13	6	0.54	130
ARES-1250	1-1/4	32	44	200	600	13	8	0.75	130
ARES-1500	1-1/2	38	51	200	600	13	9	0.91	130
ARES-2000	2	50	66	200	600	13	13	1.38	130
ARES-2500	2-1/2	63.5	79.5	200	600	13	17	1.99	65
ARES-3000	3	75	91	200	600	13	20	2.31	65
ARES-4000	4	100	116	200	600	13	27	3.09	65
