For use in tank truck and in-plant operations to transfer gasoline,oil,ethanol blends and other petroleum base products up to 50% aromatic content.

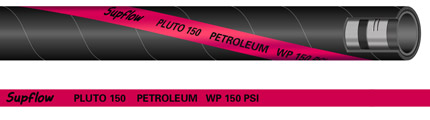

PLUTO 150 |
|
|
Lightweight, highly flexible - Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| PLUTO 150-0750 | 3/4 | 19.1 | 31 | 150 | 450 | 29 | 2.0 | 51 | 0.21 | 100 |
| PLUTO 150-1000 | 1 | 25.4 | 38.1 | 150 | 450 | 29 | 2.0 | 51 | 0.29 | 100 |
| PLUTO 150-1250 | 1-1/4 | 31.8 | 44.7 | 150 | 450 | 29 | 3.0 | 76 | 0.36 | 100 |
| PLUTO 150-1500 | 1-1/2 | 38.1 | 51.6 | 150 | 450 | 29 | 4.0 | 102 | 0.45 | 100 |
| PLUTO 150-1750 | 1-3/4 | 44.5 | 57.9 | 150 | 450 | 29 | 4.0 | 102 | 0.48 | 100 |
| PLUTO 150-2000 | 2 | 50.8 | 64.8 | 150 | 450 | 29 | 4.5 | 114 | 0.59 | 100 |
| PLUTO 150-2500 | 2-1/2 | 63.5 | 78 | 150 | 450 | 29 | 5.7 | 146 | 0.75 | 100 |
| PLUTO 150-3000 | 3 | 76.2 | 90.7 | 150 | 450 | 29 | 7.0 | 178 | 0.92 | 100 |
| PLUTO 150-3500 | 3-1/2 | 88.9 | 104.9 | 150 | 450 | 29 | 8.0 | 203 | 1.09 | 100 |
| PLUTO 150-4000 | 4 | 101.6 | 116.8 | 150 | 450 | 29 | 10.0 | 254 | 1.22 | 100 |
| PLUTO 150-6000 | 6 | 152.7 | 171.9 | 150 | 450 | 29 | 30.0 | 762 | 2.55 | 100 |
