Very excellent chemical resistance. It handles the majority of common industrial chemicals in pressure, gravity flow and suction service.

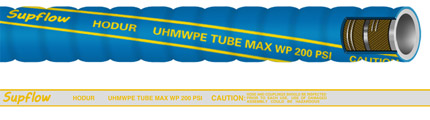

HODUR

It is a high pressure ,high temperature suction and discharge hose designed to handle the majority of common industrial chemicals .Very excellent chemical resistance and corrosion resistance.The Ultra-High Molecular Weight Polyethylene tube will not leach into and contaminate the product being conveyed . The corrugated hose construction incorporates a dual wire helix that provides full suction capability,superior kink resistance ,minimal force to bend and a path to conduct a static electrical charge to ground.Good resistance to ageing, atmospheric conditions and ozone. Good abrasion resistance.

Tube: Ultra-High Molecular Weight Polyethylene(UHMWPE)
Reinforcement: Spiral-plied synthetic fabric with double wire helix
Cover: Blue EPDM synthetic rubber , corrugated (wrapped cover)
Temp. Range: -40°F to 212°F (-40°C to 100°C)
  • Specifications
Part ID OD Work Pressure Burst Pressure Vacuum Resistance Bending Radius Weight Coil Length
Number (in) (mm) (mm) (psi) (psi) (psi) (in) (lb/ft) (ft)
HODUR-0500 1/2 12.7 24.1 200 800 13.05 3 0.33 200
HODUR-0750 3/4 19.1 31 200 800 13.05 4 0.46 200
HODUR-1000 1 25.4 37.3 200 800 13.05 4 0.60 200
HODUR-1250 1-1/4 31.8 43.9 200 800 13.05 4 0.73 200
HODUR-1500 1-1/2 38.1 50 200 800 13.05 5 0.84 200
HODUR-2000 2 50.8 64.8 200 800 13.05 6 1.22 200
HODUR-2500 2-1/2 63.5 79.8 200 800 13.05 8 1.78 200
HODUR-3000 3 76.2 92.2 200 800 13.05 9 2.11 200
HODUR-4000 4 101.6 118.6 200 800 13.05 10 2.81 200
HODUR-6000 6 152.4 175 200 800 13.05 18 5.98 100
