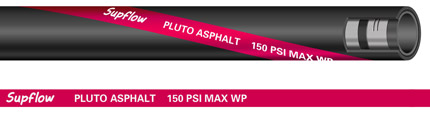

PLUTO ASPHALT - Supflow

Applications

High oil resistance
High temperature resistance
ipe durable and easy to use

Tube:	Black special heat resistant Nitrile synthetic rubber RMA Class A
Reinforcement:	Spiral-plied aramid with wire helix
Cover:	Black neoprene synthetic rubber RMA Class A with spiral red stripe
Temp. Range:	-25°F to +350°F(-32°C to +177°C)

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
PLUTO ASPHALT-1500	1-1/2	38.1	52.8	150	450	29.0	4.0	102	1.04	100
PLUTO ASPHALT-2000	2	50.8	66.0	150	450	29.0	5.0	127	1.33	100
PLUTO ASPHALT-2500	2-1/2	63.5	78.6	150	450	29.0	6.0	152	1.67	100
PLUTO ASPHALT-3000	3	76.2	92.8	150	450	29.0	7.0	178	2.23	100
PLUTO ASPHALT-4000	4	101.6	118.8	150	450	29.0	10.0	254	2.91	100
