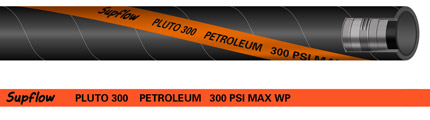

PLUTO 300 - Supflow

Applications

High oil resistance
High temperature resistance
Pipe durable and easy to use

Tube:	Special fuel-resistant Black nitrile synthetic rubber RMA Class A
Reinforcement:	Spiral-plied synthetic fabric with wire helix
Cover:	Black Neoprene synthetic rubber RMA Class A,wrapped finish
Temp. Range:	-35°F to +200°F(-37°C to +93°C)

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
PLUTO 300-1000	1	25.4	38.8	300	900	29.0	3.0	75	0.70	100
PLUTO 300-1250	1-1/4	31.8	47.1	300	900	29.0	3.9	100	0.99	100
PLUTO 300-1500	1-1/2	38.1	52.8	300	900	29.0	3.9	100	1.15	100
PLUTO 300-2000	2	50.8	65.8	300	900	29.0	4.9	125	1.44	100
PLUTO 300-2500	2-1/2	63.5	79.0	300	900	29.0	5.9	150	1.84	100
PLUTO 300-3000	3	76.2	92.7	300	900	29.0	6.9	175	2.39	100
PLUTO 300-4000	4	101.6	122.7	300	900	29.0	10.0	254	3.76	100
PLUTO 300-5000	5	127.0	149.0	300	900	29.0	19.7	500	5.11	100
PLUTO 300-6000	6	152.4	183.3	300	900	29.0	23.6	600	8.47	100
