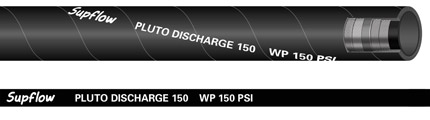

PLUTO D 150 - Supflow

Applications

Good antistatic performance
High oil resistance
Pipe durable and easy to use

Tube:	Nitrile synthetic rubber RMA Class A,plus antistatic wires
Reinforcement:	Spiral-plied synthetic fabric(2"–4":2 ply;6":4 ply),plus grounding wires
Cover:	Black NBR synthetic rubber RMA Class B
Temp. Range:	-35°F to +180°F(-37°C to +82°C)

Part	ID		OD	Work Pressure	Burst Pressure	Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(lb/ft)	(ft)
PLUTO D 150-0750	3/4	19.1	30.7	150	450	0.42	100
PLUTO D 150-1000	1	25.4	37.1	150	450	0.52	100
PLUTO D 150-1250	1-1/4	31.8	43.7	150	450	0.63	100
PLUTO D 150-1500	1-1/2	38.1	49.5	150	450	0.73	100
PLUTO D 150-2000	2	50.8	63.3	150	450	0.98	100
PLUTO D 150-2500	2-1/2	63.5	75.7	150	450	1.19	100
PLUTO D 150-3000	3	76.2	88.9	150	450	1.45	100
PLUTO D 150-3500	3-1/2	88.9	102.6	150	450	1.70	100
PLUTO D 150-4000	4	101.6	114.8	150	450	1.91	100
PLUTO D 150-6000	6	152.4	168.4	150	450	3.41	100
