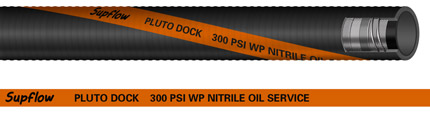

PLUTO DOCK - Supflow

Applications

Wide use range
Excellent weather resistance
Hose corrugated outer makes it has good flexibility

Tube:	Nitrile synthetic rubber for up to 50% aromatics
Reinforcement:	Heavy-duty synthetic fabric plies with double wire helix
Cover:	Black neoprene synthetic cover,corrugated,wrapped finish
Temp. Range:	-25°F to +200°F(-32°C to +93°C)

PART	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
PLUTO DOCK-3000	3	76.2	103.7	300	900	29	14.0	356	3.80	100
PLUTO DOCK-4000	4	101.6	134.4	300	900	29	19.0	483	6.30	100
PLUTO DOCK-6000	6	152.4	186.7	300	900	29	28.0	711	9.64	100
PLUTO DOCK-8000	8	203.2	244.6	300	900	29	38.0	965	15.56	100
PLUTO DOCK-10000	10	254.0	292.4	300	900	29	48.0	1219	19.75	100
PLUTO DOCK-12000	12	305.5	353.9	300	900	29	58.0	1473	28.90	50
