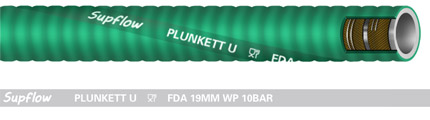

Hardwall hose designed with ultra-high molecular weight polyethylene tube,excellent in handling a wide range of chemicals, petroleum products and oils.
PLUNKETT U |
Hardwall hose designed with ultra-high molecular weight polyethylene tube,excellent in handling a wide range of chemicals, petroleum products and oils.Very excellent chemical resistance and corrosion resistance.The Ultra-High Molecular Weight Polyethylene tube will not leach into and contaminate the product being conveyed . The corrugated hose construction incorporates wire helix that provides full suction capability, a path to conduct a static electrical charge to ground.Good resistance to ageing, atmospheric conditions and ozone. |
|
- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | |
|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in.) | (in) | (lb/ft) | (ft) |
| PLUNKETT U -0500 | 1/2 | 12.7 | 24.5 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -0750 | 3/4 | 19.1 | 31 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -1000 | 1 | 25.4 | 37 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -1250 | 1-1/4 | 31.8 | 44 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -1500 | 1-1/2 | 38.1 | 51 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -2000 | 2 | 50.8 | 67 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -2500 | 2-1/2 | 63.5 | 79 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -3000 | 3 | 76.2 | 92 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -4000 | 4 | 101.6 | 118 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -4000 | 4 | 101.6 | 118 | 150 | 600 | 29 | * | * | 200 |
| PLUNKETT U -4000 | 4 | 101.6 | 118 | 150 | 600 | 29 | * | * | 200 |
