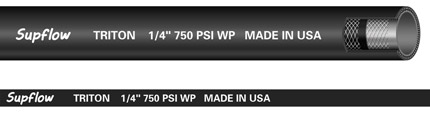

TRITON - Supflow

Applications

Free from silicone
Very flexible and good resistance to pressure
All-purpose hose for handling a variety of applications

Tube:	Nylon,silicone-free
Reinforcement:	Black synthetic rubber,RMA Class B Medium Oil Resistance
Cover:	Braided synthetic yarn(1/4” and 3/8”–1 braid)(1/2”, 3/4” and 1”–2 braid)
Temp. Range:	0°F to +190°F(-18°C to +88°C)

Part	ID		OD	Work Pressure	Burst Pressure	Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(lb/ft)	(ft)
TRITON-0250	1/4	6.4	12.4	750	2250	0.08	500
TRITON-0310	5/16	7.9	15.5	750	2250	0.13	500
TRITON-0380	3/8	9,5	17.8	750	2250	0.15	500
TRITON-0500	1/2	12.7	22.1	750	2250	0.22	500
TRITON-0630	5/8	15.9	26.7	750	2250	0.31	500
TRITON-0750	3/4	19.1	30.2	750	2250	0.36	500
TRITON-1000	1	25.4	38.4	750	2250	0.54	500
