Handles the majority of today’s industrial chemicals in pressure, gravity flow or suction service.

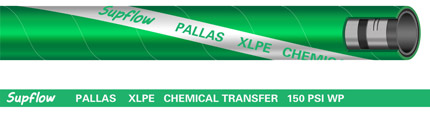

PALLAS |
|
|
Very good mechanical strength- Specifications
| Part | ID | OD | Work Pressure | Burst Pressure | Vacuum Resistance | Bending Radius | Weight | Coil Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (mm) | (psi) | (psi) | (in) | (in) | mm | (lb/ft) | (ft) |
| PALLAS-0500 | 1/2 | 12.7 | 24.6 | 150 | 450 | 29 | 6.0 | 152 | 0.31 | 100 |
| PALLAS-0750 | 3/4 | 19.1 | 31.2 | 150 | 450 | 29 | 7.0 | 178 | 0.44 | 100 |
| PALLAS-1000 | 1 | 25.4 | 37.3 | 150 | 450 | 29 | 8.0 | 203 | 0.54 | 100 |
| PALLAS-1250 | 1-1/4 | 31.8 | 43.9 | 150 | 450 | 29 | 9.0 | 229 | 0.66 | 100 |
| PALLAS-1500 | 1-1/2 | 38.1 | 51.6 | 150 | 450 | 29 | 10.0 | 254 | 0.92 | 100 |
| PALLAS-2000 | 2 | 50.8 | 66.3 | 150 | 450 | 29 | 12.0 | 305 | 1.32 | 100 |
| PALLAS-2500 | 2-1/2 | 63.5 | 79.0 | 150 | 450 | 29 | 15.0 | 381 | 1.65 | 100 |
| PALLAS-3000 | 3 | 76.2 | 91.7 | 150 | 450 | 29 | 18.0 | 457 | 2.02 | 100 |
| PALLAS-4000 | 4 | 101.6 | 119.1 | 150 | 450 | 29 | 24.0 | 610 | 2.95 | 100 |
| PALLAS-6000 | 6 | 152.4 | 174.1 | 150 | 450 | 29 | 35.4 | 900 | 6.07 | 100 |
