A high-tech flexible and versatile chemical hose capable of handing a wide variety of acids, alcohols, salt solutions and petroleum-based products.

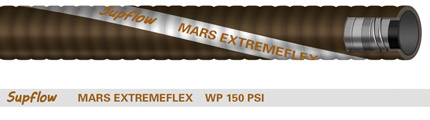

MARS EXTREMEFLEX

Flexible:easy to move in and out in a very compact space
A light weight: easy to lift and carry
Hose construction gives excellent bending radius and easy to handle, with high productivity

Tube:	Black Chlorinated Polyethylene (CPE) synthetic rubber
Reinforcement:	Spiral-piled synthetic fabric with double wire helix
Cover:	Corrugated Brown EPDM synthetic rubber with white spiral
Temp. Range:	-30°F to 275°F(-34°C to 135°C)

Specifications

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius		Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(in)	(in)	mm	(lb/ft)	(ft)
MARS-1000	1	25.3	36	150	450	29	1.5	38	0.50	100
MARS-1250	1-1/4"	32	41.5	150	450	29	2.0	51	0.57	100
MARS-1500	1-1/2"	38	48.7	150	450	29	2.3	57	0.74	100
MARS-2000	2	51.2	61.9	150	450	29	3.0	76	0.97	100
MARS-3000	3	76.2	89.8	150	450	29	4.5	114	1.80	100
MARS-4000	4	102.1	116.1	150	450	29	6.0	152	2.47	100
