Versatile suction and delivery hose specifically designed to convey a wide range of pharmaceutcal,chemical and alimentary products.

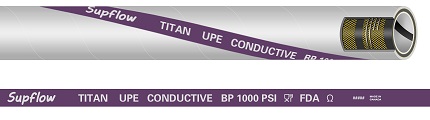

TITAN

Versatile suction and delivery hose specifically designed to convey a wide range of pharmaceutcal,chemical and alimentary products.Special UPE in-liner precisely designed to withstand contact with mainfold aggressive chemicals

Tube：	UPE white with conductive black stripe（R＜10⁵Ω）, FDA
Reinforcement:	Plies of spiral fabric & dual steel helix wire
Cover：	Smooth gray EPDM,abrasion,ozone and weather resistant, smooth,cloth finish
Temp. Range:	-35°C to 100°C/Sterilisation up to +130°C max 30min
Standard:	EN 12115,FDA,D.M.21/03/73

Specifications

Part	ID		OD	Work Pressure	Burst Pressure	Vacuum Resistance	Bending Radius	Weight	Coil Length
Number	(in)	(mm)	(mm)	(psi)	(psi)	(psi)	(in)	(lb/ft)	(ft)
TITAN-0500	1/2	13	25	300	1000	13.05	3	0.30	200
TITAN-0750	3/4	19	31	300	1000	13.05	4	0.50	200
TITAN-1000	1	25	37	300	1000	13.05	5	0.60	200
TITAN-1250	1-1/4	32	44	300	1000	13.05	6	0.70	200
TITAN-1500	1-1/2	38	53	300	1000	13.05	8	1.10	200
TITAN-2000	2	51	66	300	1000	13.05	10	1.50	200
TITAN-2500	2-1/2	63	80	300	1000	13.05	12	1.90	200
TITAN-3000	3	76	94	300	1000	13.05	14	2.50	200
TITAN-4000	4	102	122	300	1000	13.05	16	3.70	200
